Aluminum ATV Utility Trailer 5×8 Ramp UT6030-8AR

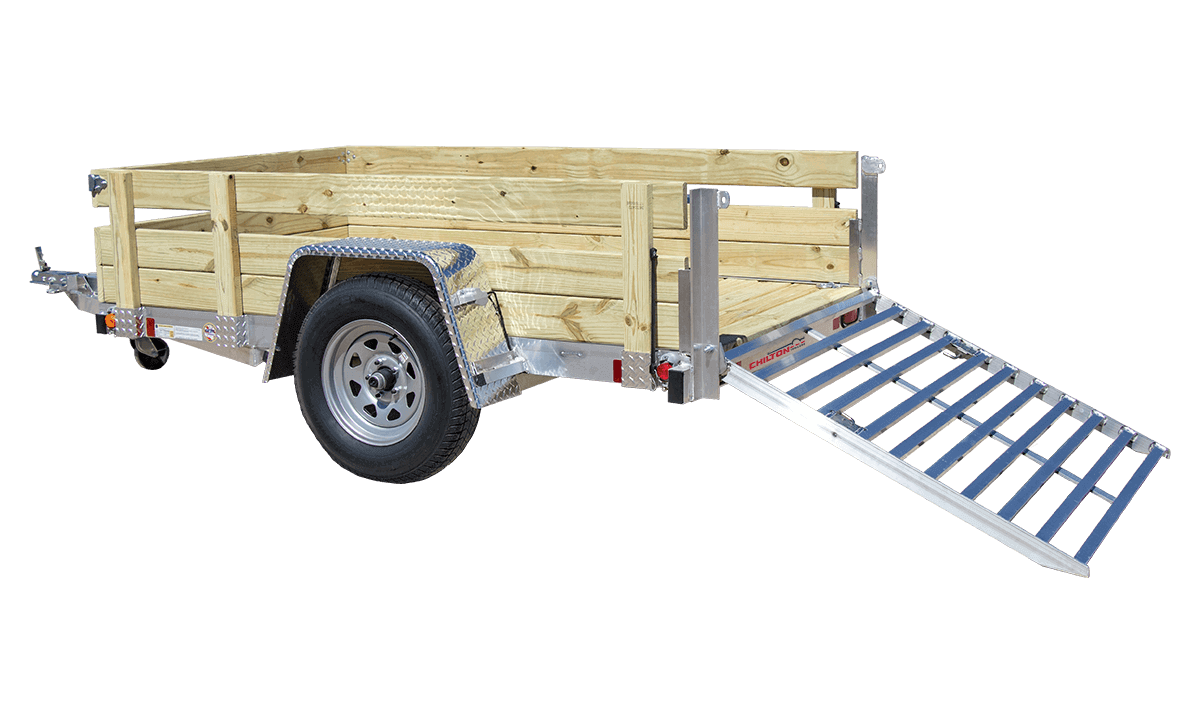

5x8 Aluminum Utility Trailer with Ramp & Wood Sides Option
This 5×8 ft single axle heavy-duty utility trailer is compact but hauls plenty of cargo. It’s available with an optional aluminum load retaining rail, or optional 3 wood sides at 11” high or 20” high that are easy to remove. Both the standard straight rear ramp and optional bi-fold ramp fold down flat on the trailer deck for hauling empty. Every Chilton Trailer is built by hand with a fully welded frame and ramp for years of reliability. Standard features include:
- Straight rear load ramp
- 5/4” pressure treated lumber deck
- Adjustable swivel jack with wheel
- Spring-loaded ramp locks for easy one-person operation
- Fully welded frame & ramps with reinforced A-frame tongue
- LED lights
- Radial tires
- 2999# GVWR (without electric brakes)*
*3500# GVWR with optional 2-wheel electric brakes
- 3 wood sides (20” high, 3-board treated lumber) OR
- 3 wood sides (11” high, 2-board treated lumber) OR
- 14.5” high aluminum load retaining rail
- 2-wheel electric brakes (increases GVWR to 3500#)
- Bi-fold ramp upgrade (adds 4” to total trailer length)
- 1000# winch package with 20-foot strap, steel mounting pedestal
- Spare tire pedestal + bracket
- Spare tire ST205/75R-15”
- Aluminum rims upgrade
- Aluminum rim with spare tire
- Additional cargo rings – backing plates welded to frame rail
- Ramp stands
Warranty Information
All Chilton Trailers are guaranteed against defective workmanship and materials for a period of 1 year, beginning with delivery to the original user/purchaser (the first legal owner of a trailer other than an authorized Chilton dealer). Free extended coverage for an additional 1 year (total of 2 years) is available if you register your trailer within 30 days of purchase.
